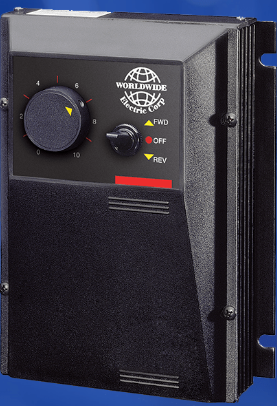

Worldwide Variable Speed Controller Reversing WPMDC Products

1 HP, 1/60/115/230 Volt input, 90/180 DC volt output, NEMA 4, Non-Reversing

Dual Voltage - 120/240 VAC, 50/60 Hz Adjustable Horsepower Settings Barrier Terminal Strip Packaged Bridge Supply (Fullwave) 1% Speed Regulation with Armature Voltage Feedback; ± 1/2% with Tach Feedback Adjustable Minimum Speed (0-30% of max.) Adjustable Maximum Speed (66-110% of base) Adjustable IR Compensation Adjustable Linear Acceleration (0.5-8 sec.) Adjustable Current Limit to 15 Amps Line Voltage Compensation 5K Ohm Speed Potentiometer with Leads, Knob and Dial Included Power On / Off Switch 50:1 Speed Range Overload Capacity: 150% for One Minute Transient Voltage Protection Voltage Following Mode or DC Tachometer Follower by Supplying Underground Analog Input Signal (0-12 VDC) DC Tachometer Feedback (6 V at Base Speed) Inhibit Circuit - Permits Start and Stop Without Breaking AC Lines Remote Start/Stop via Pot Circuit or Inhibit Circuit Shunt Field Supply Provided (1 Amp Max.; 100 V for 120 VAC; 200 V for 240 VAC Input) AC Line Fuse Rated NEMA 4/12 with Threaded Conduit Holes
