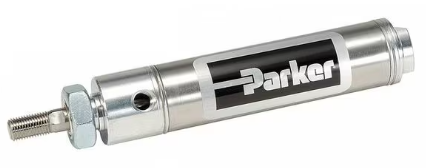

Parker Pneumatic Air Cylinder

by Slaymaker Electric
$77.15 - $77.15
$77.15
$77.15 - $77.15
$77.15

1 1/4" Bore, 3" Strocke, Stainless Steel, Nose Mounting

BrandPARKERManufacturer Part Number1.25DSR03.00Cylinder ActionDouble ActingCylinder TypeRound BodyMounting StyleNoseBore Diameter1-1/4 inStroke Length3 inBody MaterialStainless SteelBody Material Grade304Magnetic PistonNon-Magnetic PistonCushion TypeNoneRepairable CylinderNon-RepairableAir Inlet1/8 in NPTSeriesSRFor Fluid TypeAirSystem of MeasurementInchEnd Cap MaterialAluminumNumber of RodsSingle RodMaximum Operating Pressure250 psiBody Diameter1-5/16 inNose Mount Thread Size3/4"-16Rod Diameter7/16 inRod Thread Length3/4 inRod Thread Size7/16"-20Maximum Operating Temperature165 °FMinimum Operating Temperature-10 °FPiston MaterialAluminumPiston Rod MaterialStainless SteelEnd Cap Length1/4 inRod RotationRotating RodUNSPSC27131701Country of OriginUSA (subject to change)
SKU 1.25DSR03.00
