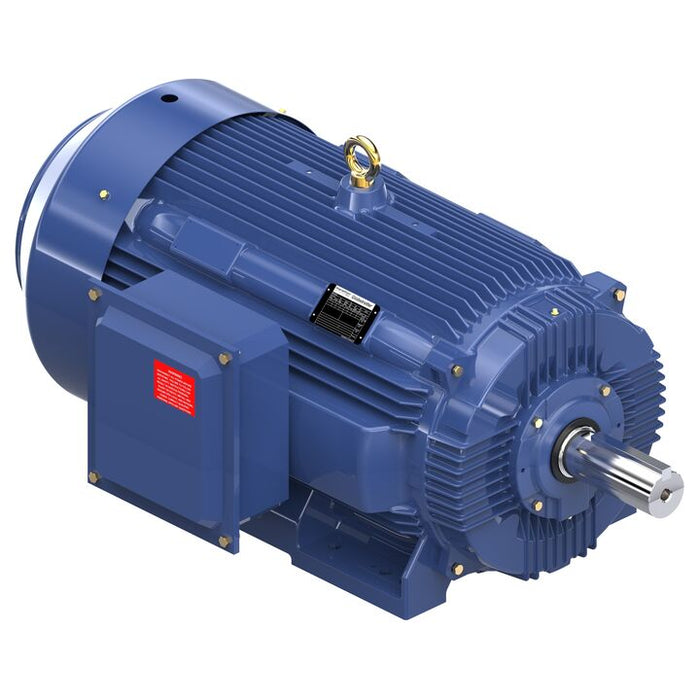

Marathon Globetrotter® General Purpose Motor

250 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 449T Frame, TEFC, With Roller Bearing

GT1070 IP-55 cast iron, Meets or exceeds NEMA Premium® efficiencies, NEMA Premium models are in compliance with EISA2007 Class F Insulation System, Inverter duty 10:1 variable torque and 2:1 constant torque & 1.15 service factor on Sine Wave Power 1.0 SF on Inverter Power F1/F2 capable, Dynamically balanced rotors, Steel conduit box Dual Frame Mounting Modifications and Kits are available 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power Drive End Roller Bearing Division 2 Class 1 groups A,B,C,D this is for TEFC models, T2B temp code UL®* listed, UL certified for Canada and CE®* mark
