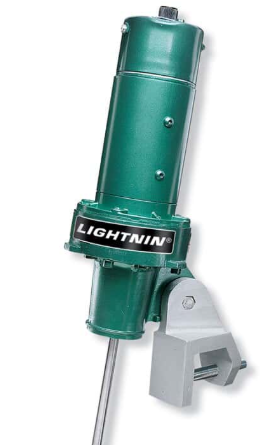

Lightnin High-Torque Direct-Drive Mixer

Fixed-Speed, Offset Clamp, TEFC

Product Description Includes 316 stainless steel (SS) shaft, 316 SS A-310 impeller, and a drive quill with set screw. Key Features Mix up to 50 gallons of fluid! These mixers offer more horsepower and torque than the small batch mixers. 1 year warranty More About this Item Use these batch mixers in a wide range of applications. Choose a direct-drive model for small batch mixing or high-shear applications. Mixing shafts may be cut to suit tank depth. Use the sizing guide (available in the Technical Library) to select the appropriate mixer for your application. TEFC models operate on 208-230/460 VAC, three-phase power and requires power wiring to the motor. High-torque mixers are available with 20° offset tank clamps. The offset clamp positions mixer for angular, off-center mounting on unbaffled tank rims. Specifications Material316 Stainless Steel Min Speed (rpm)1750 Max Speed (rpm)1750 Mounting TypeC-clamp Max Torque (in-oz)140 Motor TypeTEFC Impeller Size (in)3.8 Impeller Size (mm)96.52 Shaft Diameter (in)0.625 Shaft Diameter (mm)15.875 Shaft Length (in)48 Shaft Length (mm)1219.2 Power (Phase)3 Power (VAC)208/230 Motor hp1/2 Descriptionhigh-torque direct-drive mixer; fixed-speed, offset clamp, TEFC Warranty1 Year
