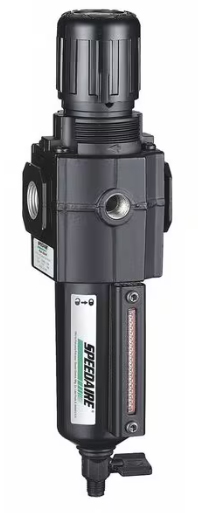

Compressed Air Filter-Regulator

1/2 in NPT, 120 cfm, 40 micron, 5 psi to 150 psi, Manual Drain

Filter-Regulator, Filter Bowl Material Metal with Sight Gauge, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 120 cfm, Filter Rating 40 micron, Filter Type Particulate, Maximum Operating Pressure 250 psi, Drain Type Manual, Pressure Gauge Included No, Body Material Aluminum, Overall Width 2 11/16 in, Series Intermediate Duty, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Reinforced Nylon, Air Flow Direction Left to Right, Air Inlet Gender Female Dimensions Connection Size - Air Treatment 1/2 in NPT Size - Air Treatment Intermediate Bowl Size - Air Treatment 3.5 oz Gauge Port Size 1/4 in PTF Overall Width 2 11/16 in Pipe Size 1/2" NPT Overall Height 9.95 in Bowl Size 3.5 oz. Pressure Gauge Port Size 1/4 in Air Inlet Size 1/2 in Air Outlet Size 1/2 in Details Item - Filter-Regulators Filter-Regulator Filter Rating - Air Treatment 40 micron Max. Incoming Pressure - Air Treatment 250 psi Max. Flow - Air Treatment 120 cfm Adjustment Range - Air Treatment 5 to 150 psi Bowl Material - Air Treatment Metal with Sight Gauge Max. Flow 120 cfm Bowl Material Metal with Sight Gauge Adjustment Range 5 to 150 psi Adjustment Knob Non Rising For Removal Of Particles, Water Item Filter-Regulator Max. Temp. 175 Degrees F Filter Rating 40 micron Max. Pressure 250 psi Includes Metal Bowl Drain Type Manual Weight 0.95 kg Air Outlet Gender Female Filter Bowl Guard Material Aluminum Air Outlet Type NPT Modular Connection No Modular Connection Pressure Gauge Included No Air Inlet Type NPT Filter Bowl Material Metal with Sight Gauge Filter Efficiency 95 % Body Material Aluminum Pressure Gauge Port Gender Female Sight Gauge Included No Adjustment Location Top Number of Air Outlets 1 Maximum Flow Rate 120 cfm Minimum Regulated Pressure 5 psi Air Flow Direction Left to Right Maximum Regulated Pressure 150 psi Number of Air Inlets 1 For Fluid Type Compressed Air Differential Pressure Indicator Included No Filter Element Material PE Filter Bowl Guard Included Yes Minimum Operating Temperature 5 Degrees C For Substance Type Air Air Inlet Gender Female Maximum Operating Pressure 250 psi Series Intermediate Duty Drain Part Compatibility 114X33 Adjustment Mechanism Material Reinforced Nylon Regulator Type Relieving Drain Included Yes Seal Material Rubber Duty Rating Intermediate Duty Adjustment Mechanism Knob Minimum Operating Pressure 0.85 MPa Pressure Gauge Port Type PTF Filter Bowl Capacity 3.5 oz Maximum Operating Temperature 175 Degrees F Filter Type Particulate Type Intermediate
