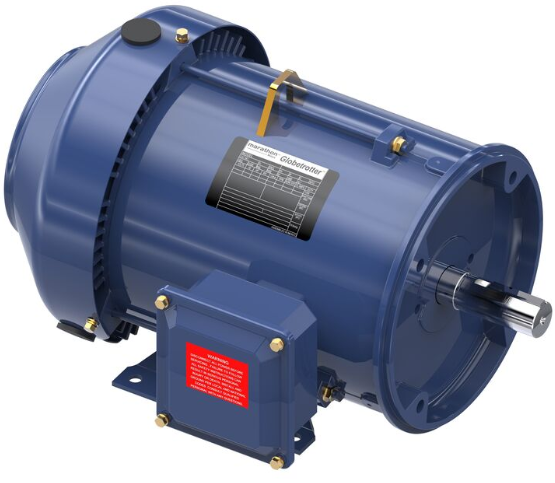

Marathon Globetrotter General Purpose Motor

3 HP, 3 PH, 60 HZ, 230/460 V, 1800 RPM, 182TC Frame, TEFC

1.125" shaft 182TTFBD6028 Inverter duty 10:1 variable torque and 10:1 constant torque 1.15 Service factor on sinewave, 1.0 service factor on IGBT power Meets temperature code T2B Class F insulation Standard assembly F1, reversible to F2 assembly Ul recognized, CSA certified, CE mark
