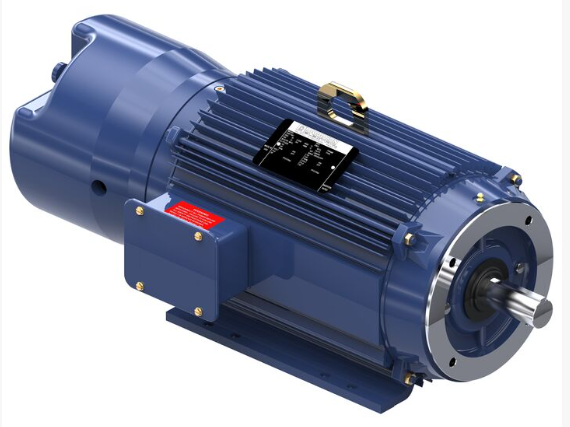

Marathon Aluminum Brake Motor

7.50 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 213TC Frame, TENV

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Brake has manual wear adjustment up to 25 lb-ft. for longer pad life Brake leads routed through motor conduit box (TENV only) CR200 Corona resistant magnet wire (motor can be operated 10:1 variable torque and 2:1 constant torque 1.0 service factor Aluminum frame construction Class F insulation Stearns brakes, 56,000 series through 25 Lb-Ft, 87 series above 35 LB-Ft and larger Universal mounting up to 15 Lb-Ft, C406 has vertical springs included, for larger brakes, see mod section UL recognized, CSA certified and CE mark
