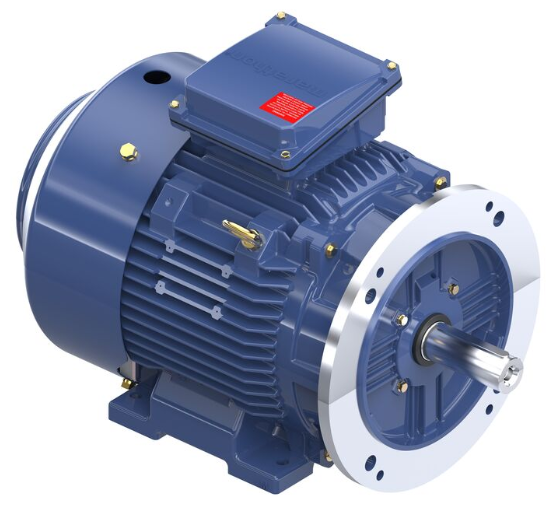

Marathon TerraMAX® Cast Iron Motor

15 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 160M Frame, TEFC, Shaft 42 MM

R833 Meets IE3 European and NEMA Premium efficiencies Cast Iron frame construction Nameplated 60/50 Hz at next lower HP IP55 weatherproof enclosure Wye Start-Delta Run on 160 Frame and larger 10:1 Variable Torque, 10:1 Constant Torque speed range 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD Top Mounted/Oversized gasketed terminal box Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty IEC Design "N" with NEMA "B" Torques With Base
